Description

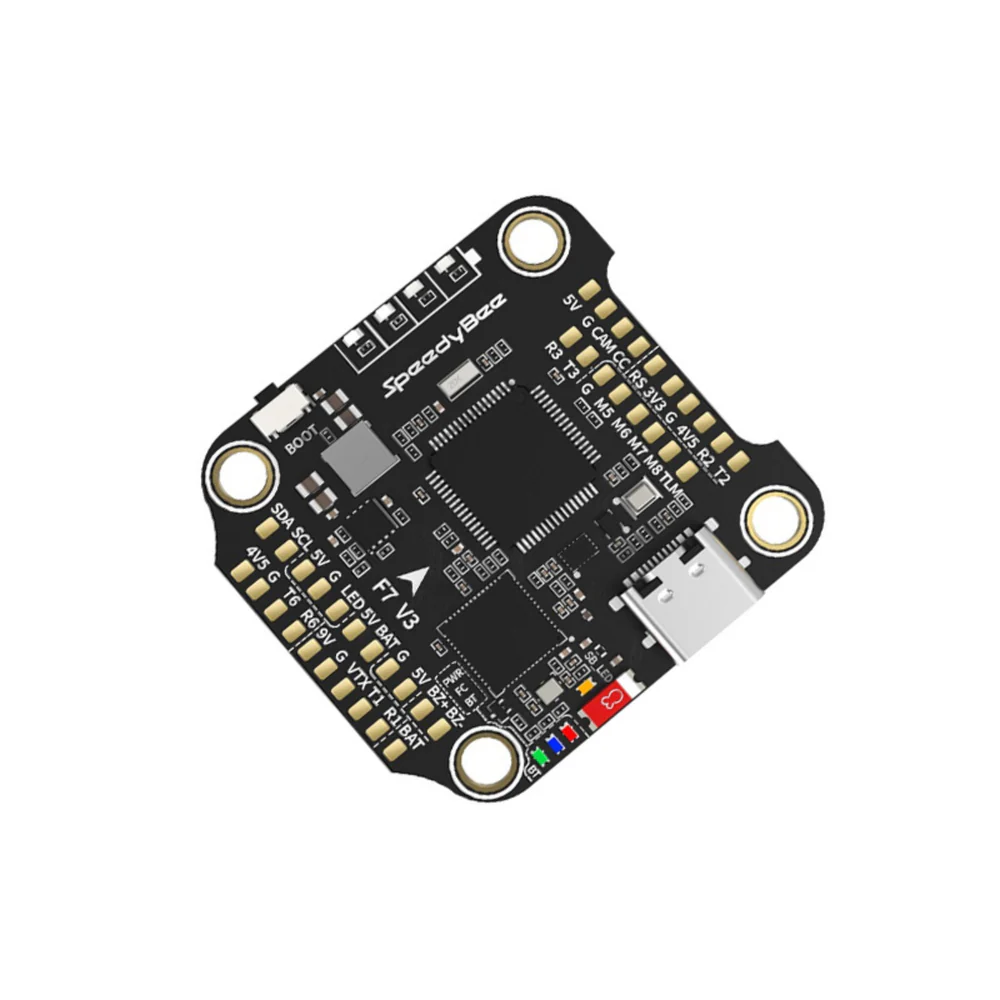

The SpeedyBee F7 V3 Wireless Flight Controller is a high-performance, flagship flight computer engineered to bring absolute control, effortless configuration, and premium features to modern FPV racing and freestyle drones. Powered by a high-speed STM32F722 processor and paired with the stable BMI270 gyroscope and a built-in BMP280 barometer, it delivers lightning-fast loop times and ultra-smooth handling. This board completely redefines workbench convenience with an integrated 2.4 GHz Wi-Fi and Bluetooth combo chip, allowing pilots to completely configure, tune, and flash Betaflight or iNav firmware wirelessly from a smartphone via the SpeedyBee app—no USB cables needed. Featuring full 3S-6S LiPo input compatibility, 5 dedicated UART sets, an onboard AT7456E analog OSD chip, and a pre-installed physical safety buzzer, it stands as the ultimate, feature-packed standard $30.5 \times 30.5$ mm centerpiece for premium drone frames.
Technical Specifications
| Specification | Details |
| Brand | SpeedyBee |
| Model | F7 V3 Flight Controller |
| Main Processor (MCU) | STM32F722 High-Speed 32-Bit Array |
| Inertial Measurement Unit (Gyro) | BMI270 (High-Stability Low-Noise) |
| Onboard Barometer | BMP280 (For Alt-Hold & Real-time Altitude Reading) |
| Wireless Connectivity | Onboard 2.4 GHz Wi-Fi & Bluetooth Combo (Full Wireless App Tuning) |
| On-Screen Display Chip | AT7456E Chip (Native Betaflight Analog OSD) |
| Input Operational Power | 3S ~ 6S LiPo / LiHv |
| Interface Port | Modern USB Type-C |
| Hardware Hardware Ports | 5 x Dedicated Hardware UARTs (UART 1, 2, 3, 4, 6) |
| ESC Telemetry Port | Assigned to R4 (UART 4) |
| Peripheral Buses | Multi-connectivity options via UART, I2C, and SPI |
| Onboard Recovery Tools | Integrated Loud Physical Buzzer |
| Mounting Layout Pattern | 30.5 x 30.5 mm (With 4mm silicone dampening holes) |
| Device Dimensions | 41 x 38 mm |
| Device Net Weight | 10.7 grams |
| Shipping Dimensions | 12 x 5.8 x 3 cm |
| Shipping Weight | 0.072 kg (72 grams) |
Package Includes
-
Core Unit: 1 x SpeedyBee F7 V3 Wireless Flight Controller Board.
-
ESC & Digital HD Interconnects: 1 x SH1.0 8-Pin Connecting Cable (30mm – for FC-ESC Connection), 1 x DJI Digital HD Air Unit 6-Pin Cable (80mm).
-
Camera Harness Array:
-
1 x 4-Pin SH1.0 to 3+2 Pin JST1.25 FPV Cam Cable (30mm)
-
1 x 4-Pin SH1.0 to 3+2 Pin JST1.25 FPV Cam Cable (60mm)
-
1 x 4-Pin SH1.0 to 4-Pin JST1.25 FPV Cam Cable (60mm)
-
-
Receiver & VTX Harnesses: 1 x 4-Pin SH1.0 Radio Receiver Terminal Cable (100mm), 1 x 4-Pin SH1.0 to 4-Pin SH1.0 Analog VTX Interface Cable.
-
GPS Navigation Harnesses: 1 x 6-Pin SH1.0 GPS Module Cable (100mm – open wires on the opposite end), 1 x 6-Pin SH1.0 GPS Module Cable (with pre-terminated connectors on both ends).
-
Vibration Dampening: 5 x M3 x 8mm Custom Silicone Anti-Vibration Isolation Grommets.
