RadioMaster Zorro Radio Controller

Description

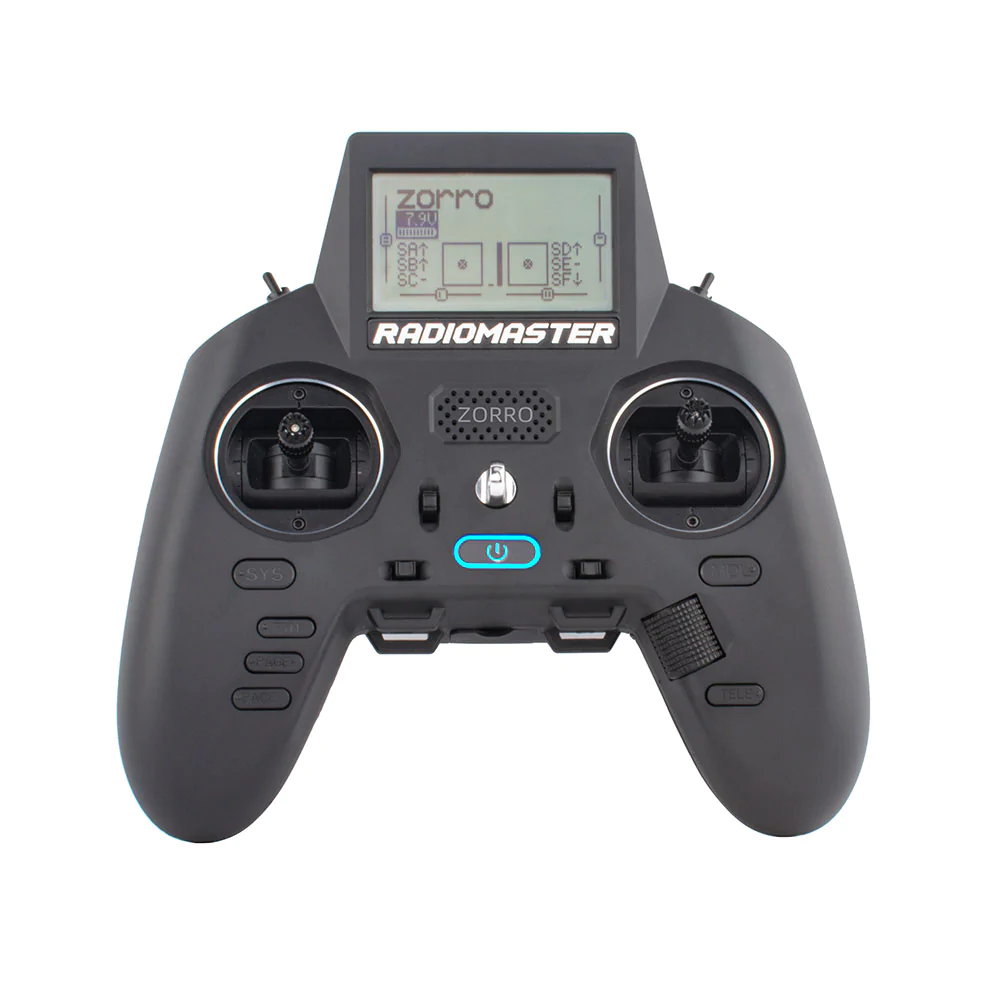

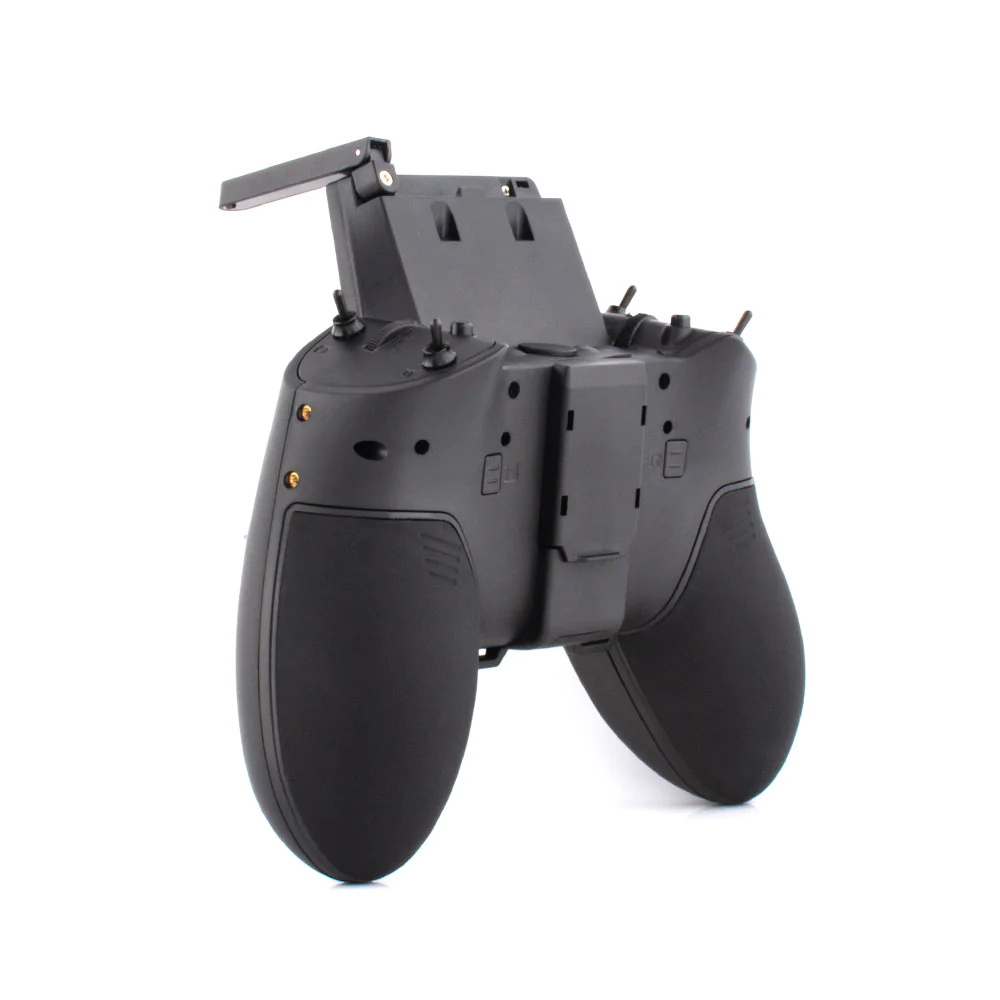

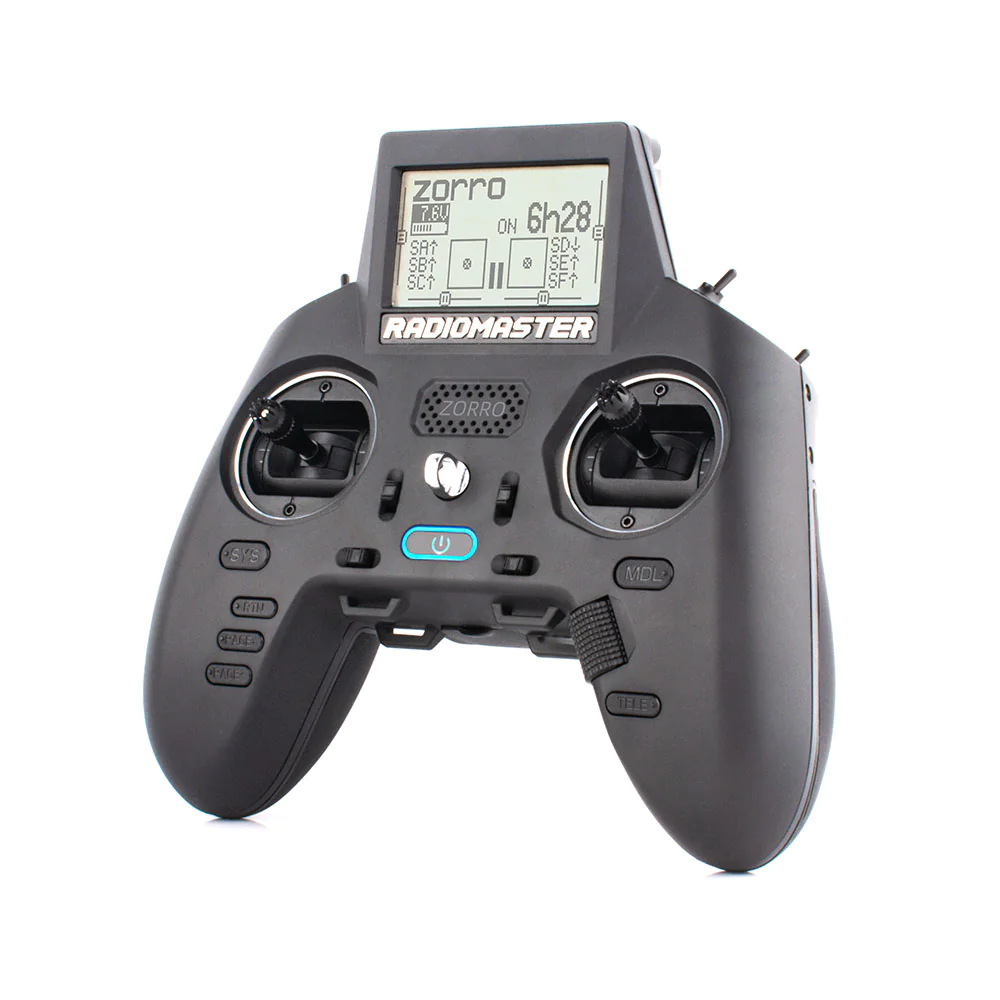

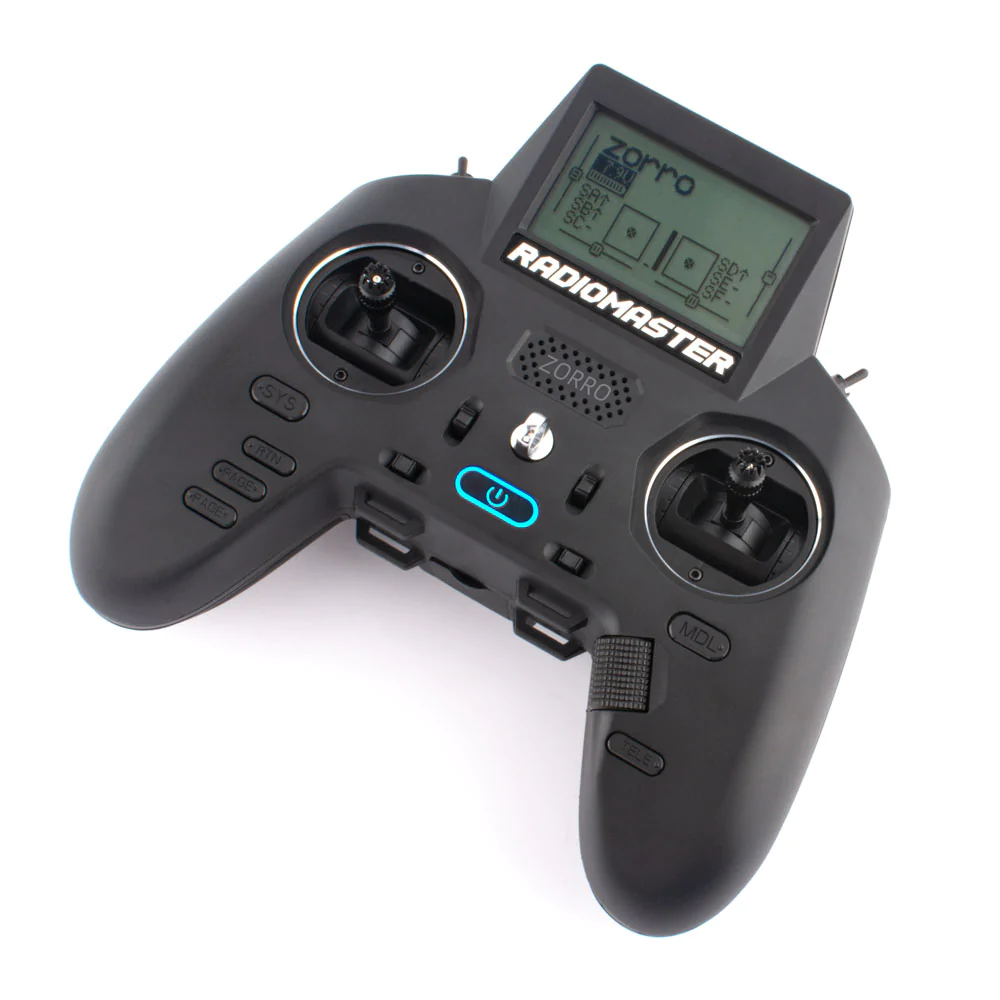

The RadioMaster Zorro Radio Controller is an industry-leading, game-style ergonomic transmitter designed to bring high-end open-source control links into a highly portable, compact form factor. Engineered with an ultra-comfortable gamepad layout, the Zorro features a crisp $128 \times 64$ backlit monochrome LCD screen, adjustable high-precision Hall-effect gimbals, and native OpenTX/EdgeTX operating system compatibility. With an integrated nano-size module bay expanding support to elite cross-platform links like TBS Crossfire or Tracer, internal high-efficiency USB-C charging, and top-mounted folding antennas, this radio offers absolute versatility and multi-kilometer control range for FPV freestyle, micro whoop racing, and advanced multirotor builds.

Support OPENTX & EDGETX

Specification	Details
Brand	RadioMaster
Model	Zorro Series Radio Controller
Physical Dimensions	170 x 159 x 108 mm
Net Device Weight	350 grams (Highly Lightweight Design)
Operating RF Frequency	2.400GHz ~ 2.480GHz
Antenna Layout Profile	180° Folding 2dB High-Gain Omnidirectional
Operating Voltage Range	6.6V ~ 8.4V DC
Operational Current Draw	160mA @ 8.4V
Primary Display Matrix	$128 \times 64$ Monochrome Backlit LCD Screen
Maximum RC Channels	Up to 16 Control Channels (Receiver Dependant)
Battery Requirement	2 x 18350 Lithium-Ion Cells (Not Included)
Charging System Protocol	Built-in Internal USB-C Charging & Data Interface
Firmware Flash Method	Via Micro SD Card or Direct USB Connection

Internal RF Options & Power Ratings

Internal RF Version	Supported System Protocols	Maximum RF Output Power	Reliable Control Distance
ExpressLRS (ELRS)	Native ExpressLRS Links	Up to 250mW	Receiver Dependent (Extreme Long-Range)
4-in-1 Multi	Frsky, Flysky, Futaba, DSMX, etc.	20dBm (100mW) max.	> 2 Kilometers
CC2500 Multi	Frsky D8/D16, Futaba SFHSS, Corona	20dBm (100mW) max.	> 2 Kilometers

Store Selection Buying Guide (Package Includes)

Choose your specific transmitter or bundle version from our dropdown option checklist:

ELRS Standalone Edition:

1 x RadioMaster Zorro Radio Controller (Internal ExpressLRS Module)
ELRS Starter Set Bundle:

1 x RadioMaster Zorro Radio Controller (Internal ELRS), 2 x EP1 Full-Range 2.4GHz ELRS Receivers (with T-Antennas), 1 x EP2 Compact 2.4GHz Receiver (with Built-in Ceramic Antenna)
4-in-1 Multi-Protocol Edition:

1 x RadioMaster Zorro Radio Controller (Internal 4-in-1 Multi-Protocol Chipset)
CC2500 Standalone Edition:

1 x RadioMaster Zorro Radio Controller (Internal CC2500 Chipset)
CC2500 + TBS Crossfire Combo Pack:

1 x RadioMaster Zorro Radio Controller (CC2500 Version), 1 x Team BlackSheep (TBS) Nano Crossfire Transmitter Module
