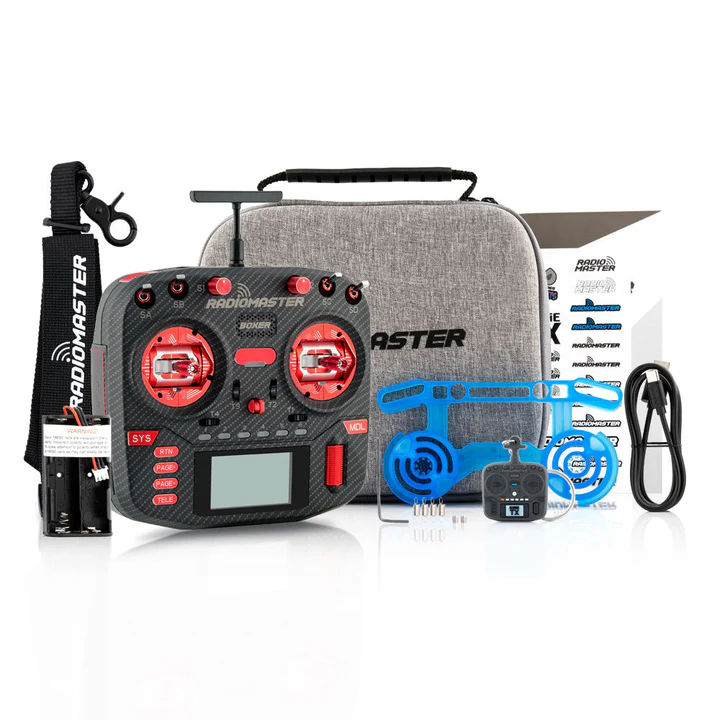

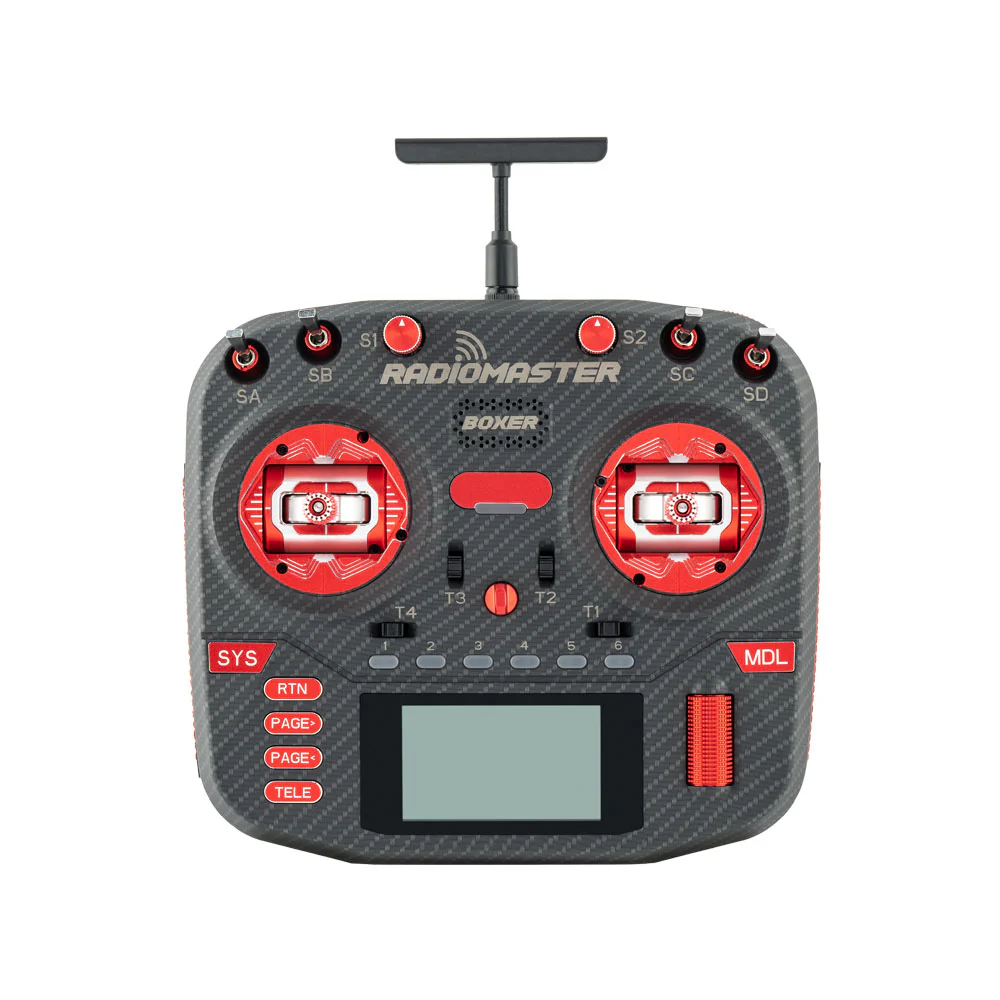

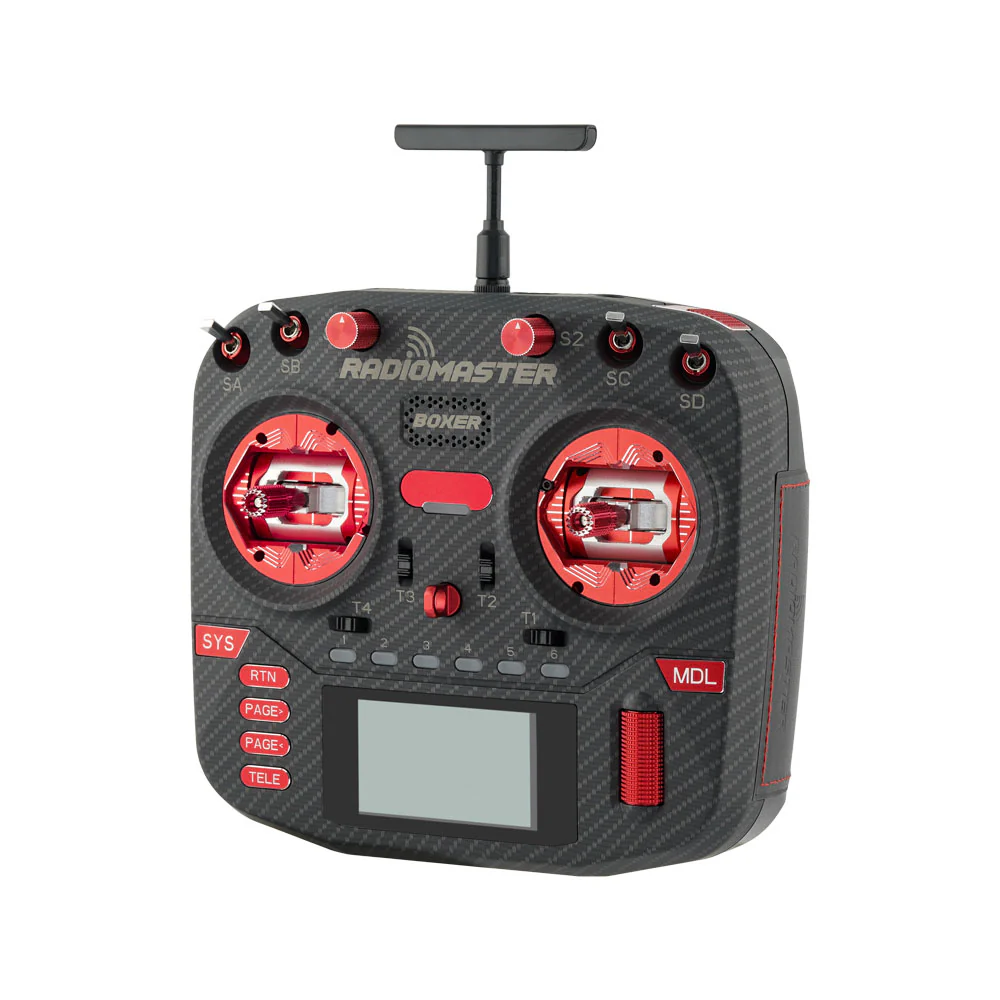

RadioMaster Boxer Max Radio Controller (M2) ELRS

Description

Optional 3 colors – Black/Red/Gold
CNC Aluminum AG01 Hall-effect Gimbal
Carbon fiber pattern case
CNC buttons and roller as standard

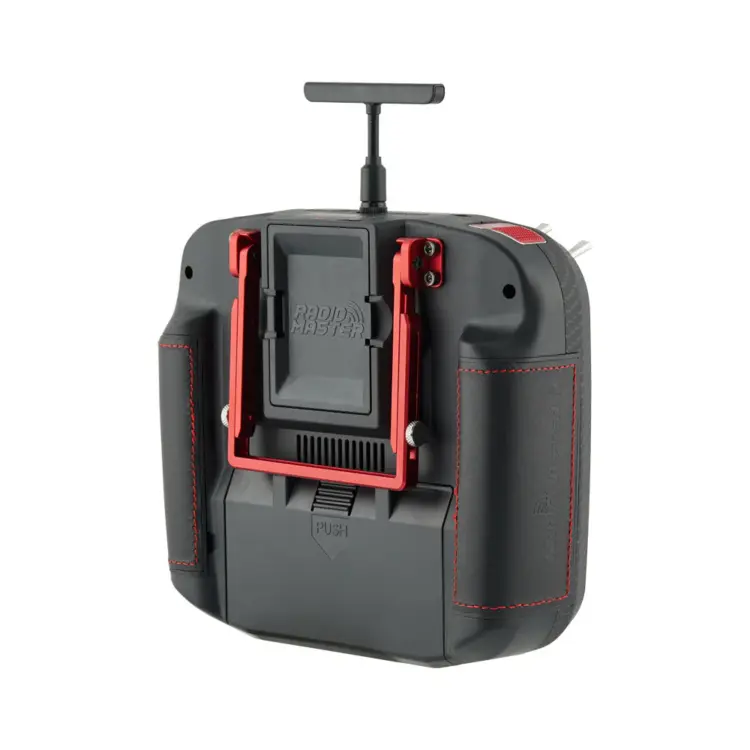

Adjustable length CNC metal folding stand
Upgraded black leather grips
Available with built-in ExpressLRS Backpack
Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
Preinstalled EdgeTX firmware
Internal ELRS module capable of 1,000Hz refresh rate
Adjustable ELRS RF output
QC3.0 fast charging support 2.0A MAX
Compact design with excellent ergonomics
New low-profile latching SE switch and momentary SF switch
Oversized battery compartment- Space for a 2S 6200mAh pack (Batteries not included)
Standard JR module compartment
Internal module cooling fan built in (ELRS version)
RadioMaster standardized button layout
Versatile programable 6-position switch
Adjustable and Removable T-shape Antenna
Changeable, ergonomic grips
Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
External module power slots in battery cover
RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Item: BOXER Max Radio
Color: Black/Red/Gold
Size: 235*178*77mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
Internal RF: ELRS 2.4GHz
Supported protocols: Module dependent
Cooling fan: Built in (ELRS version)
Voltage Range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Display: 128*64 Monochrome LCD display
Gimbal: AG01 CNC Hall Gimbal
Module Bay: JR-compatible module bay for additional modules
Upgrade Method: USB / SD card & EdgeTX Companion PC software
BONUS: Radiomaster neck strap and CNC adjustable stand
