Description

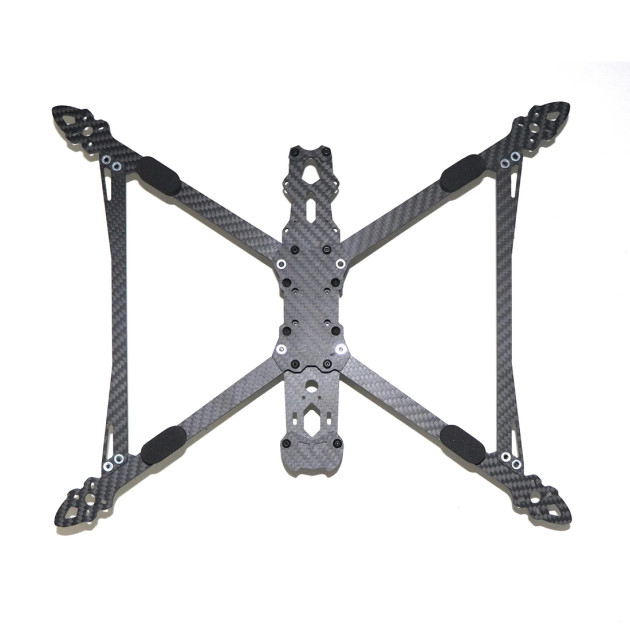

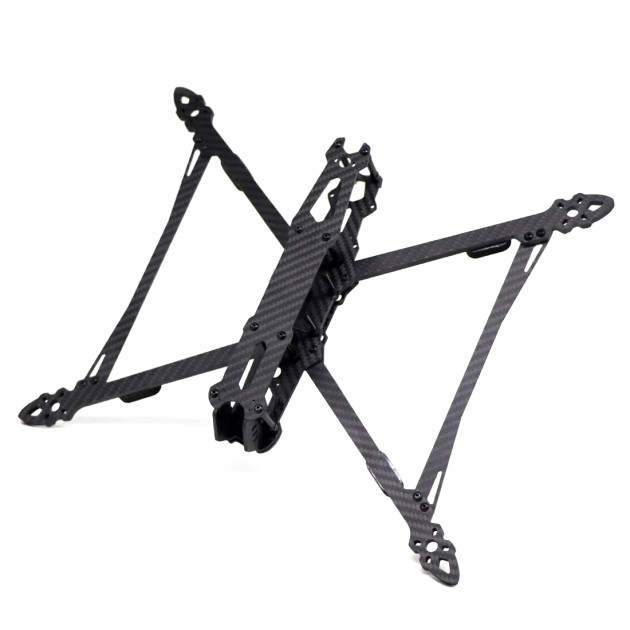

The MARK4 V2 10-Inch Carbon Fiber Long-Range FPV Drone Frame is a highly rigid, ultra-lightweight endurance platform engineered specifically for massive 10-inch props, long-range tracking, and heavy payload autonomous cruising. Precision-cut from high-grade carbon fiber, it features heavy-duty 5mm thick replaceable arms paired with 2.5mm top and bottom plates to strike an absolute balance between extreme flight stability and structural sturdiness. Boasting dual 30.5mm stack mounts, versatile VTX configurations, and a sleek aerodynamic footprint, this frame offers easy assembly and simple field maintenance, making it an excellent choice for both senior custom builders and beginners stepping into large-format FPV.
Technical Specifications
| Specification | Details |
| Model | MARK4 V2 10-Inch |
| Frame Wheelbase | 450 mm (Diagonal Motor-to-Motor Distance) |
| Frame Type | True-X Long-Range / Endurance Frame |
| Material Construction | Premium Carbon Fiber |
| Arm Thickness | 5 mm (Replaceable Arms) |
| Top Plate Thickness | 2.5 mm |
| Bottom Plate Thickness | 2.5 mm |
| Max Propeller Size | 10 Inches |
| Stack Mounting Pattern | Dual 30.5 x 30.5 mm (M3) Front & Rear |
| VTX Mounting Pattern | 20 x 20 mm (M3) & 30.5 x 30.5 mm (M3) |
| Motor Mounting Pattern | 16 x 16 mm / 19 x 19 mm |
| Camera Compatibility | Micro and Standard Sizes (19mm / 22mm Width) |
| Weight (Without Hardware) | ~155 grams |

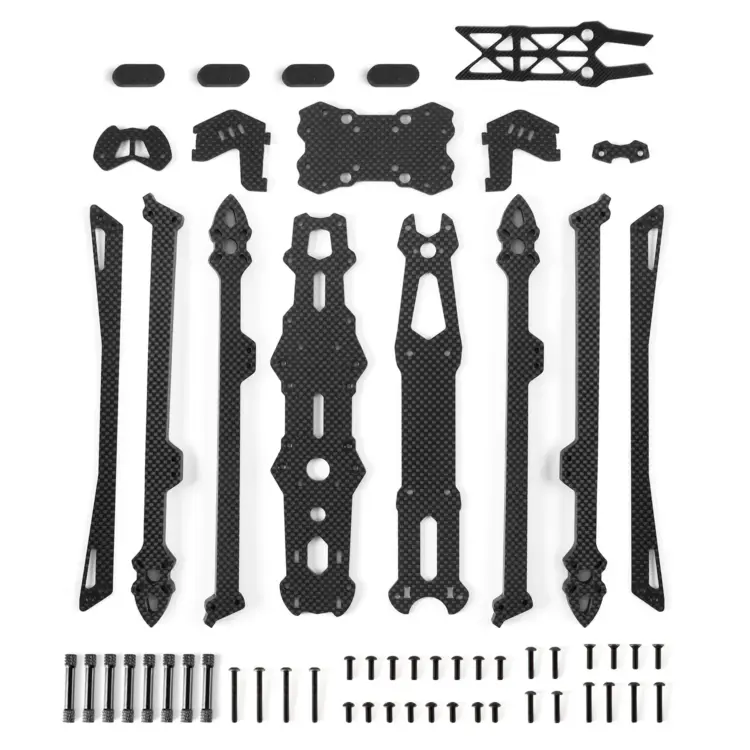

Package Includes
-
1 x MARK4 V2 10-Inch Carbon Fiber Frame Kit
-
4 x 5mm Carbon Fiber Frame Arms
-
1 x Top Plate (2.5mm) & 1 x Bottom Plate (2.5mm)
-
1 x Complete Premium Assembly Screw & Stand-off Hardware Pack
