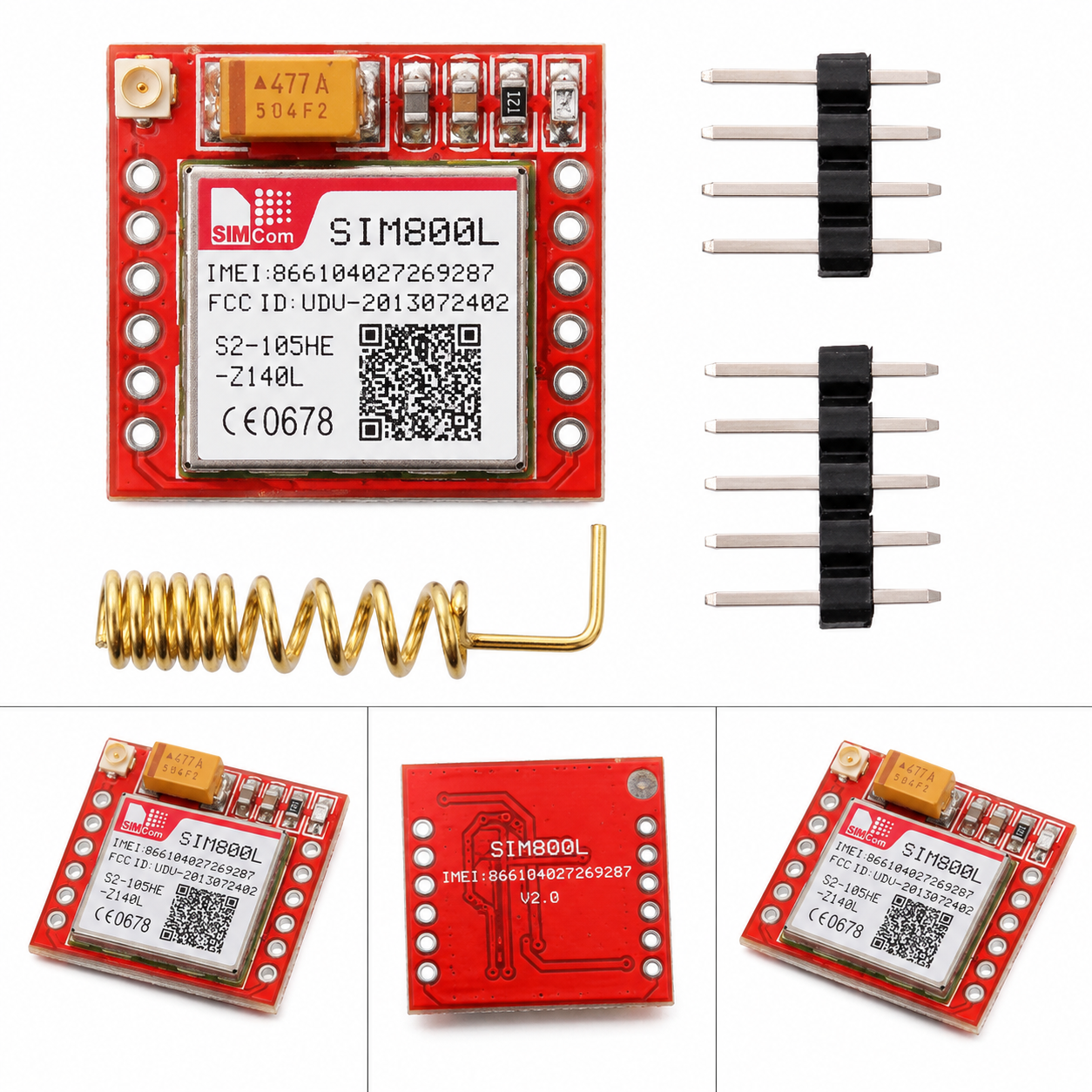

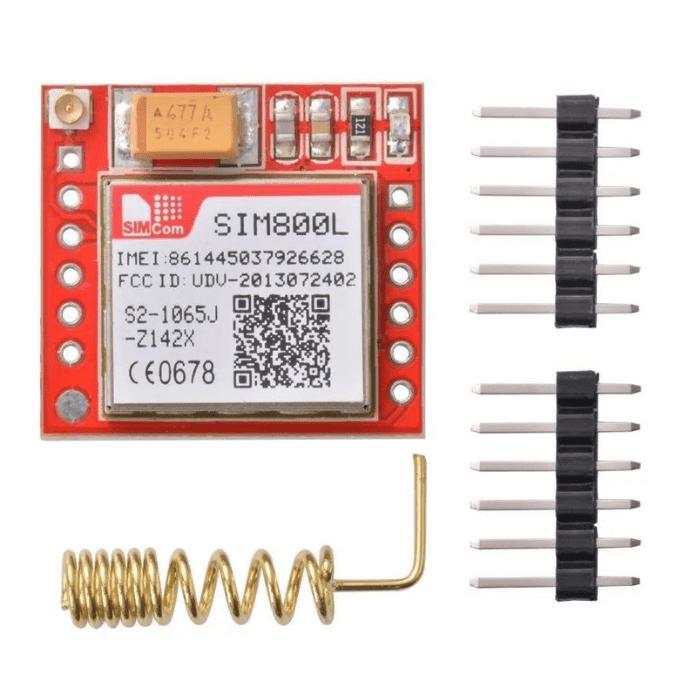

SIM800L GSM/GPRS Module – Compact Wireless Communication Module
Product Description
The SIM800L GSM/GPRS Module is a compact and reliable wireless communication module designed for IoT, automation, tracking, and remote monitoring applications. It supports voice calls, SMS messaging, and GPRS data communication over GSM networks, making it ideal for embedded systems requiring cellular connectivity.
With low power consumption, a simple UART interface, and support for standard AT commands, the SIM800L can be easily integrated with Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller platforms. Its small form factor makes it suitable for portable and space-constrained projects.
Key Features
✔ Supports GSM/GPRS Communication
✔ Send and Receive SMS Messages
✔ Voice Call Functionality
✔ GPRS Data Transmission Support
✔ UART Serial Communication Interface
✔ Standard AT Command Support
✔ Compact and Lightweight Design
✔ Low Power Consumption
✔ Quad-Band GSM Support
✔ Easy Integration with Microcontrollers
✔ Stable Wireless Connectivity
✔ Ideal for IoT and Automation Projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Model | SIM800L |
| Network Type | GSM/GPRS |
| GSM Frequency | Quad-Band 850/900/1800/1900 MHz |
| Communication Interface | UART Serial |
| Supply Voltage | 3.4V – 4.4V DC |
| Recommended Voltage | 4.0V DC |
| GPRS Class | Class 12 |
| AT Command Support | Yes |
| SIM Card Type | Micro SIM |
| Operating Temperature | -40°C to +85°C |
| Antenna | External Antenna Supported |
| Dimensions | Compact Module Design |
Package Includes
✔ 1 × SIM800L GSM/GPRS Module
Important Information
- Requires a stable 4V power supply capable of delivering up to 2A peak current.
- A valid GSM SIM card is required for operation.
- Network availability depends on the local cellular service provider.
- Product images are for illustration purposes only. Actual product may vary slightly depending on manufacturer revisions.
