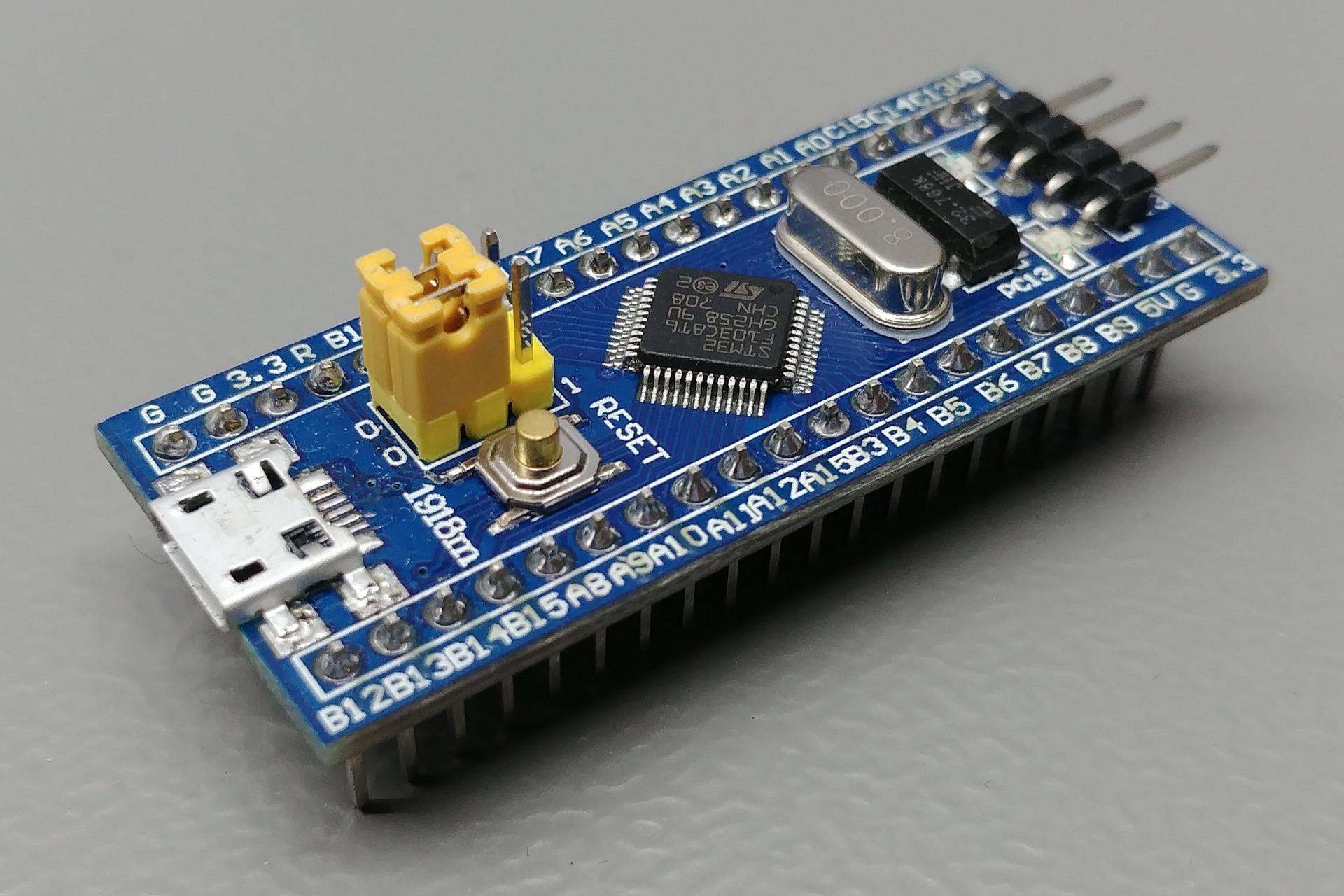

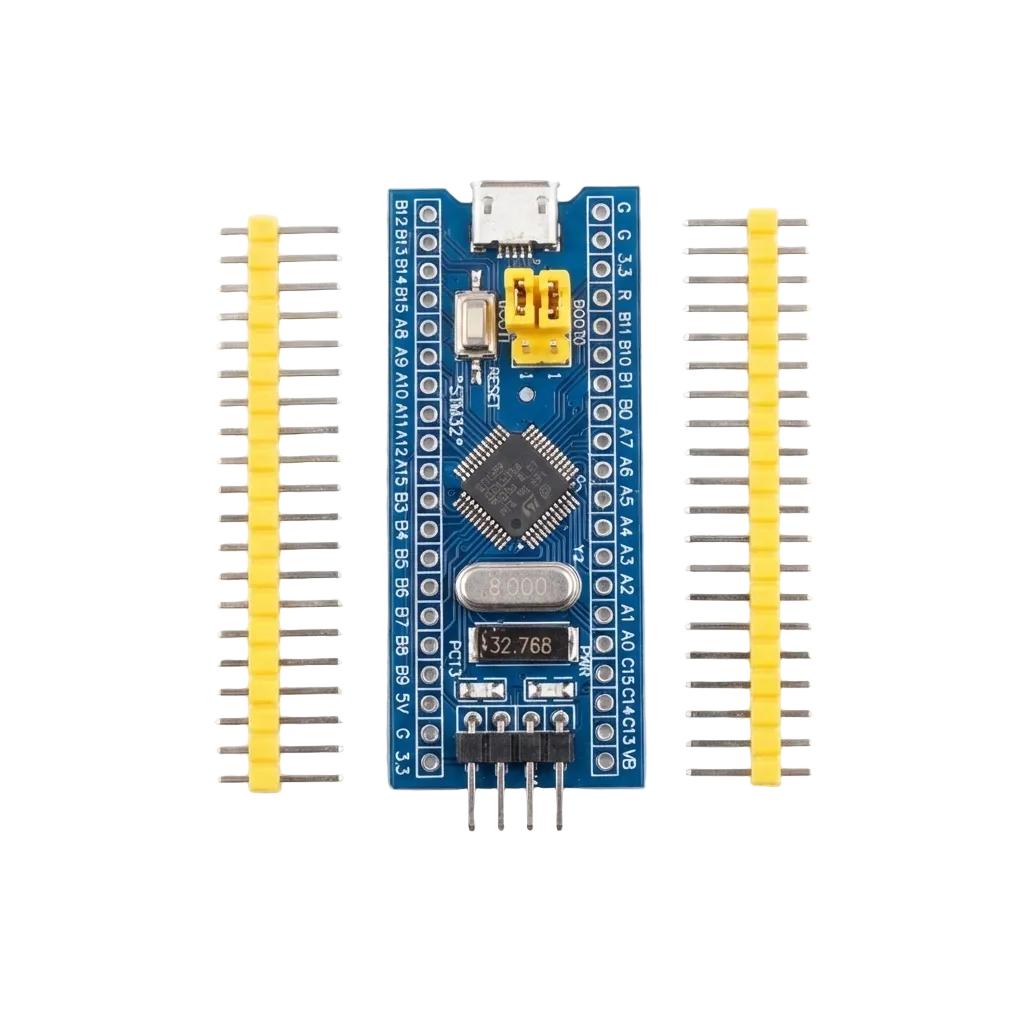

STM32 Blue Pill Development Board (STM32F103C8T6 ARM Cortex-M3)
Product Description
The STM32 Blue Pill Development Board is a compact and powerful microcontroller platform based on the STM32F103C8T6 ARM Cortex-M3 processor. Running at up to 72MHz, it delivers high performance, low power consumption, and a rich set of peripherals, making it ideal for embedded systems, automation, robotics, and advanced electronics projects.
Featuring multiple GPIO pins, communication interfaces, PWM outputs, and analog inputs, the Blue Pill provides excellent flexibility for developers, students, and engineers. Its small form factor and compatibility with popular development environments make it a popular choice for professional and educational applications.
Key Features
✔ STM32F103C8T6 ARM Cortex-M3 Microcontroller
✔ 32-Bit Processor Running at 72MHz
✔ 64KB Flash Memory
✔ 20KB SRAM
✔ 37 GPIO Pins
✔ Multiple PWM Output Channels
✔ 12-Bit ADC Support
✔ USB 2.0 Full-Speed Interface
✔ UART, SPI, and I²C Communication
✔ Low Power Consumption
✔ Compact and Breadboard-Friendly Design
✔ Compatible with Arduino IDE, STM32CubeIDE & Keil
Technical Specifications
| Parameter | Specification |
|---|---|
| Microcontroller | STM32F103C8T6 |
| Architecture | ARM Cortex-M3 (32-Bit) |
| Clock Speed | Up to 72MHz |
| Flash Memory | 64KB |
| SRAM | 20KB |
| Operating Voltage | 2.0V – 3.6V |
| GPIO Pins | 37 |
| ADC | 12-Bit ADC |
| USB Interface | USB 2.0 Full-Speed |
| Communication | UART, SPI, I²C, CAN |
| PWM Support | Multiple Channels |
| Board Dimensions | Approx. 53.4mm × 22mm |
Package Includes
✔ 1 × STM32 Blue Pill Development Board
Important Information
- USB cable is not included unless specifically mentioned.
- The board operates at 3.3V logic levels.
- Some GPIO pins are not 5V tolerant; use proper voltage level shifting when required.
- Product images are for illustration purposes only. Actual product may vary slightly depending on manufacturer revisions.
