Description

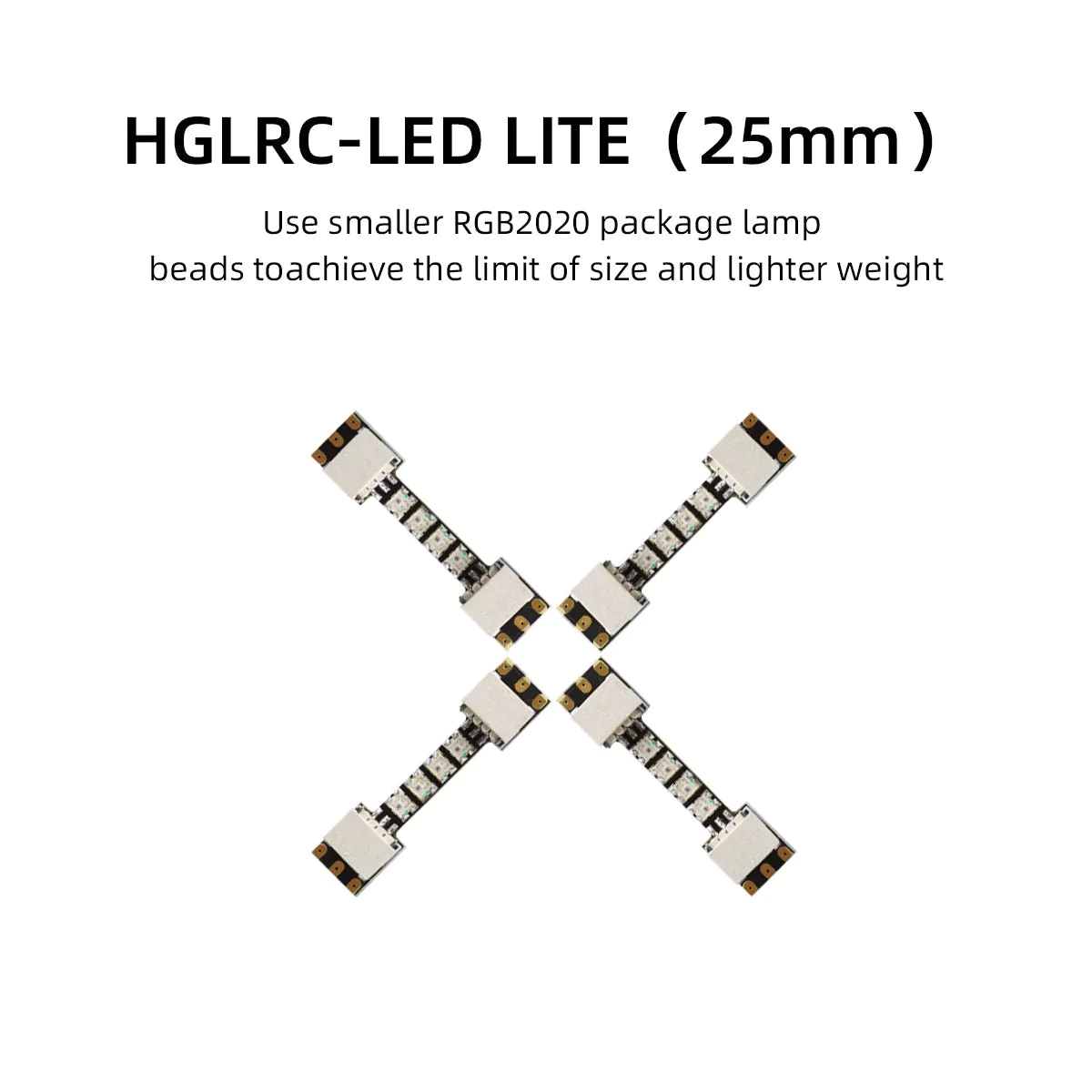

The HGLRC LED Lite (25mm) Digital RGB Light Bar Set is an ultra-miniaturized, next-generation lighting system engineered to bring high-intensity visual customization to micro quads and racing drones. Upgraded from the legendary W554B series, this premium light bar utilizes extreme-density RGB 2020 package lamp beads to achieve a hyper-compact form factor while packing 4 brilliant, individually addressable LEDs per strip. Weighing a mere 0.65 grams, the system is fully programmable via Betaflight/iNav or an external W2812 controller, giving pilots the freedom to sync colors and dynamic effects for race track visibility. Designed for seamless field maintenance, it features convenient direct-plug connectors, eliminating the hassle of soldering during rapid trackside repairs.
Technical Specifications
| Specification | Details |
| Brand | HGLRC |
| Model | LED Lite (25mm) Kit |
| Product Type | Programmable RGB LED Light Bar |
| Input Voltage | 5V DC |
| LED Package Type | Ultra-Small RGB 2020 Lamp Beads |
| LED Count | 4 LEDs per individual bar (Up to 48 LEDs supported in array) |
| Control Interface | Flight Controller (Betaflight/iNav) or HGLRC W2812 Controller |
| Connection Interface | SH1.0 3-Pin Direct-Plug Port |
| Harness Cable Length | 70 mm |
| Dimensions (L x W x H) | 25 x 7.1 x 5 mm |
| Weight | 0.65 grams (Single LED Bar) |
| Shipping Dimensions | 7 x 7 x 1 cm |

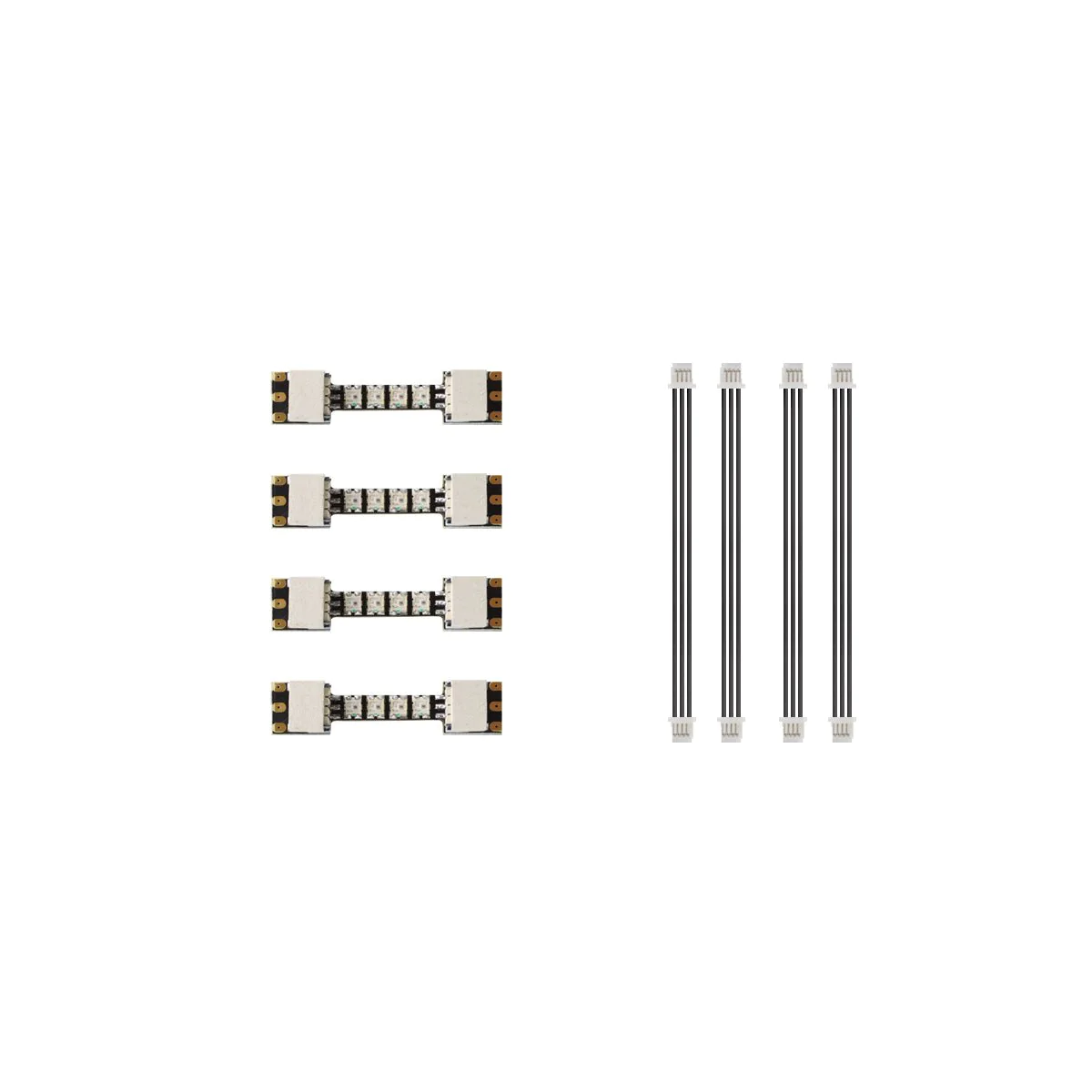

Package Includes
-
4 x HGLRC LED Lite (25mm) Programmable Light Bars
-
4 x SH1.0 3-Pin Double-Ended 70mm Connecting Cables
⚠️ Note: To prevent overloading your flight controller’s onboard 5V regulator, ensure the total current draw of your combined LED arrays stays within the safe milliamp (mA) threshold provided by your FC’s BEC output.
